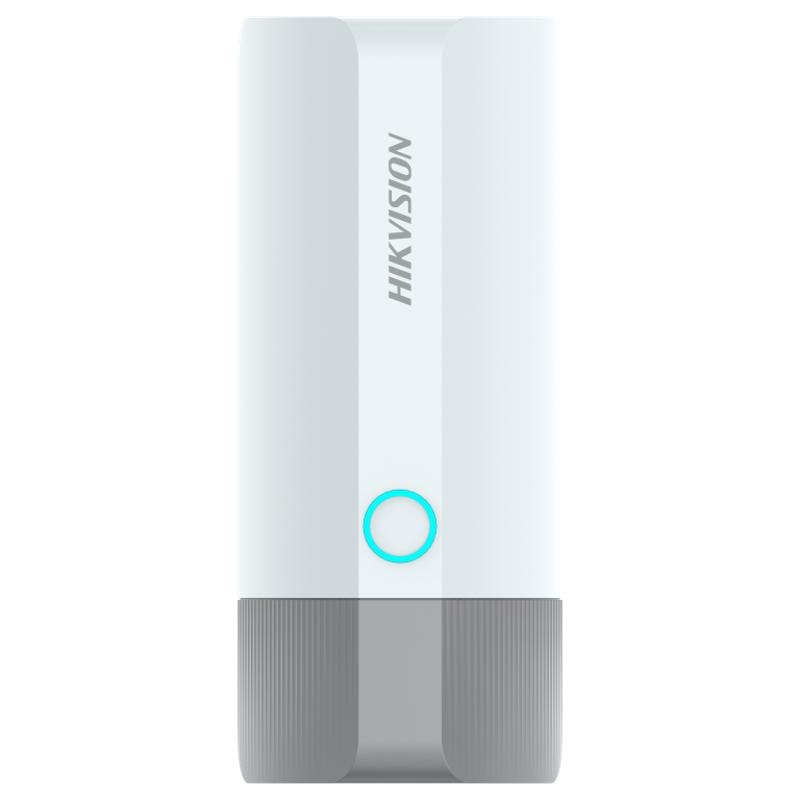

Hikvision Outdoor WiFi 6 PoE Access Point

Description

Hikvision Outdoor WiFi 6 PoE Access Point

Specifications

• Installation Mode: Wall-Mounted,Pole
• Working Temperature: -30 °C to 55 °C (-22 °F to 131 °F)
• Working Humidity: 5% to 95% (no condensation)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Storage Humidity: 5% to 95% (no condensation)
• Product Dimensions (W × H × D): 102 mm × 110 mm × 250 mm (3.97” × 4.33” × 9.84”)
• Packing List: 3000 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
• Power Consumption: Max. 14.4 W
• IP Rating: IP68
• Interface: 1 × Gigabit RJ45 uplink port
• Power Supply: IEEE 802.3af/at POE,48 VDC 0.3A
• LED Indicator: Yellow/green/blue for different working states, flashing mode
• Maximum Number of Clients: 256
• Recommended Number of Clients: 100
• Maximum Number of SSIDs: 8
• Working Frequency Band: radio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
• Wi-Fi Standards: Wi-Fi 6
• Wi-Fi Speed: 2.4 G: 575 Mbps,5 G: 2400 Mbps
• Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
• Channel Width: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ 160MHz
• Number of Antennas: 2.4GHz：2；5GHz：2
• Antenna Type: Built-in omnidirectional antennas
• Antenna Gain: 2.4 GHz: 10 dBi,5 GHz: 5 dBi
• Transmit Power: 23 dBm
• Modulation Technology: OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
• WLAN Security: WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support…
• Management & Maintenance: Centralized AC management
• Version Upgrade: upgrade on Web
• EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
