Description

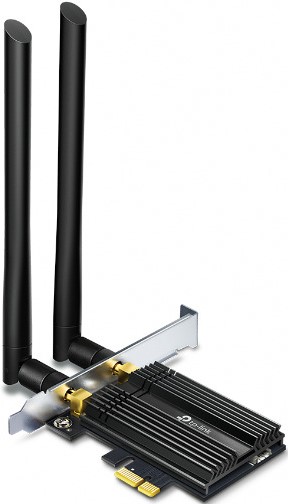

TP Link AX3000 Dual Band Wi-Fi 6 Bluetooth 5.2 PCI Express Adapter – Unrivalled Wi-Fi 6 Speed Up to 2402Mbps at 5GHz and 574Mbps at 2.4GHz, Wider Signal Coverage, Bluetooth 5.0 2x Faster Speed and 4x Broader Coverage than BT 4.2, Improved Security WPA3, Two High-Gain Dual Band Antennas, Backward Compatibility, Retail Box, 6 Months Warranty.
Product Overview
AX3000 Wi‑Fi 6 + Bluetooth 5.0 PCIe Adapter for Desktops Equipped with an Intel Wi‑Fi 6 chipset and two 5 dBi high‑gain dual-band antennas, delivering up to 2402 Mbps on 5 GHz (11ax HT160) and 574 Mbps on 2.4 GHz for gigabit-class wireless performance. Supports 802.11ax/ac/n/a/b/g, 1024‑QAM modulation, WPA3 security, and Bluetooth 5.0/4.2/4.0 profiles, with excellent reception sensitivity (down to –62.25 dBm on 5 GHz 11ax HT40) and adjustable transmit power for reliable connectivity up to +27 dBm (5 GHz, FCC).
Features
•Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
•Smoother Experience—75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting and seamless live streaming
•Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
•Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
•Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
•Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
•Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
•Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
Specifications
•Product Code: ARCHER TX50E
•Description: TP Link AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
•Antenna: Two High-Gain Dual Band Antennas
•Chipset: Intel Wi-Fi 6 Chipset
Wireless Standards
•IEEE 802.11ax/ac/n/a 5 GHz
•IEEE 802.11ax/n/g/b 2.4 GHz
•Bluetooth 5.0/4.2/4.0
WLAN Signal Rate
5 GHz
•11ax: Up to 2402 Mbps(dynamic)
•11ac: Up to 1733 Mbps(dynamic)
•11n: Up to 300 Mbps(dynamic)
•11a: Up to 54 Mbps(dynamic)
2.4 GHz
•11ax: Up to 574 Mbps(dynamic)
•11n: Up to 300 Mbps(dynamic)
•11g: Up to 54 Mbps(dynamic)
•11b: Up to 11 Mbps(dynamic)
•WLAN Reception Sensitivity
5 GHz :
•11ax HT160：-56.25dBm
•11ax HT80: -59dBm
•11ax HT40: -62.25dBm
•11ax HT20: -65dBm
•11ac HT160：-62dBm
•11ac HT80: -65.5dBm
•11ac HT40: -69.75dBm
•11ac HT20: -73.75dBm
•11n HT40: -74.5dBm
•11n HT20: -77.5dBm
•11a 54Mbps: -77.75dBm
•11a 6Mbps: -94.5dBm
2.4GHz :
•11ax HT40: -60.75dBm
•11ax HT20: -63.75dBm
•11n HT40: -73dBm
•11n HT20: -76.25dBm
•11g 54Mbps: -76.5dBm
•11b 11Mbps: -89dBm
WLAN Transmit Power
•5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
•2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
•WLAN Modes: Infrastructure Mode
•Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
•Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Bluetooth Profiles
•Archer TX50E support the native BT profiles implemented in Windows 10.
•Certification: CE, FCC, RoHS
•System Requirements: Windows 10(64-bit) only
•Operating Temperature: 0℃~40℃ (32℉~104℉)
•Storage Temperature: -40℃~70℃ (-40℉~158℉)
•Operating Humidity: 10%~90% non-condensing
•Storage Humidity: 5%~90% non-condensing
