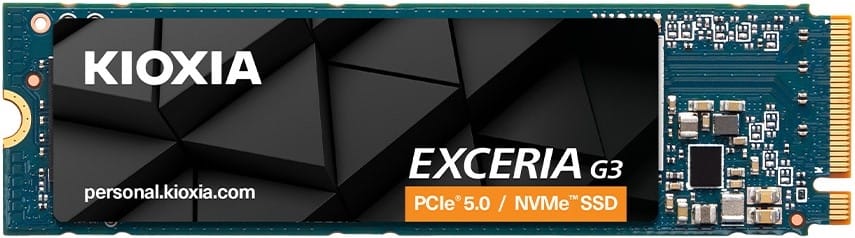

Kioxia Exceria G3 M.2 2280 NVMe PCIe 2TB SSD

Description

Kioxia Exceria G3 NVMe SSD – 2TB Capacity, M.2 2280 Form Factor, PCI Express Base Specification Revision 5.0 Interface, 128GT/s Interface Maximum Speed, 10000Mbps Max Sequential Read Speed, 9600Mbps Max Sequential Write Speed, 1200TBW Endurance, 0 ℃ to 85 ℃ Operating Temperature, RoHS Compliant, Retail Box, 3 Years Warranty.

Product Overview

The Kioxia Exceria G3 2TB NVMe SSD delivers up to 10,000 MB/s read and 9,600 MB/s write speeds with PCIe 5.0 x4 and NVMe 2.0c support. Featuring BiCS FLASH QLC memory, it offers up to 1,600,000/1,450,000 random read/write IOPS for responsive gaming, AI applications, and everyday computing. Its compact M.2 2280 design suits desktops and notebooks, with utility management software, RoHS compliance, and reliable operating temperatures from 0°C to 85°C.

Features

•BiCS FLASH™
•NVMe™ 2.0c Technology
•M.2 2280 Form Factor
•PCIe® Gen5 x4
•SSD Utility Management Software

Specifications

•Product Code: LVC10Z002TG8
•Description: Kioxia Exceria G3 NVMe SSD
•Capacity: 2TB
•Form Factor: M.2 Type 2280-S3-M
•Interface: PCI Express® Base Specification Revision 5.0 (PCIe®)
•Flash Memory: BiCS FLASH QLC
•Interface Maximum Speed: 128GT/s (PCIe Gen 5 x 4)
•Interface Protocol: NVM Express Base Specification 2.0c
•Max Sequential Read Speed: 10000MB/s
•Max Sequential Write Speed: 9600MB/s
•Max Random Read Speed: 1,600,000 IOPS
•Max Random Write Speed: 1,450,000IOPS
•Endurance TBW: 1,200 TB
•MTTF: 1.5 Million Hours
•Operating Temperature: 0 ℃ (Ta) to 85 ℃ (Tc)
•Storage Temperature: -40 ℃ to 85 ℃
•Certification: RoHS Compliant
•Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
•Vibration: 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
•Supply Voltage: 3.3 V ±5 %
Power Consumption
•PS3: 50 mW (typ.)
•PS4: 5 mW (typ.)
•Power Consumption (Active): 6.4W (typ.)
•Dimension (Max: LxWxH): 80.15 x 22.15 x 2.38 mm
•weight: 5.8g (typ.)
