Description

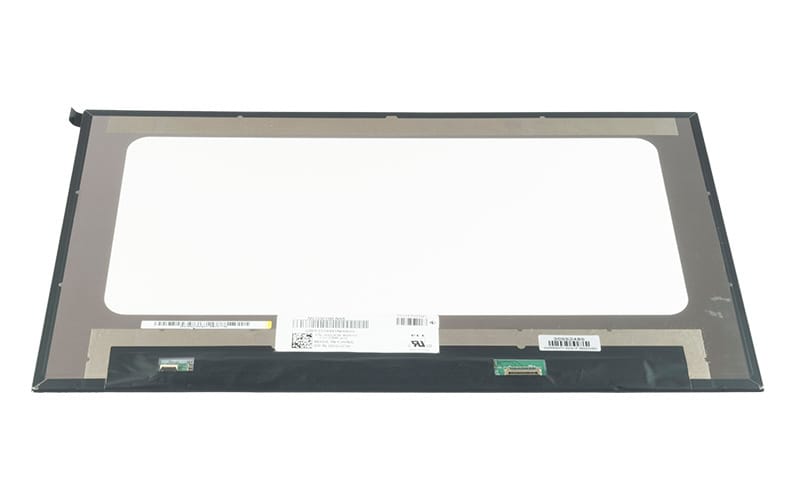

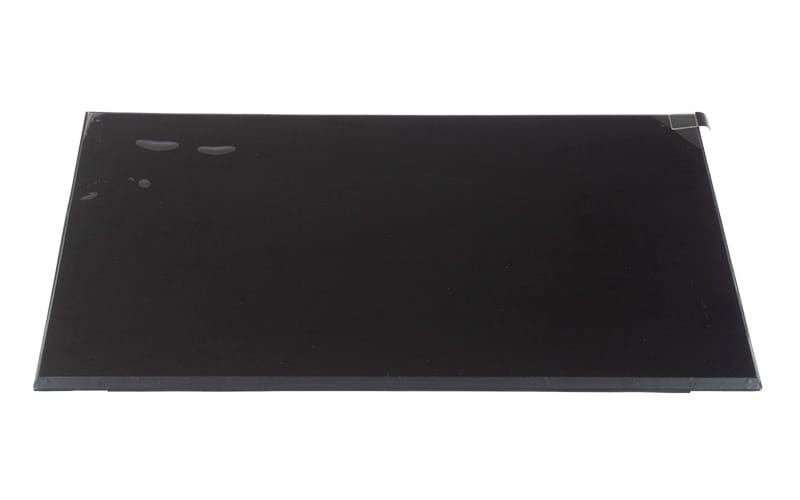

15.6″ FHD LCD Screen – 1920X1080 – IPS – Matte Surface – Narrow 30-Pin eDP1.3 Bottom-Right Connector – No Mounting Bracket – No Bottom Tab
Specifications
Screen Diagonal – 15.6″
Resolution – FHD (1920X1080)
Panel Type – IPS
Surface Finish* – Matte
Connector Socket Type – Narrow 30-Pin eDP 1.3
Connector Position – Bottom -right
Mounting Brackets – None
No Bottom tab
Compatible Part Numbers
- NV156FHM-N6B
- NV156FHM-N4W
- AUO- B156HAN02.6
- B156HAN02.9
- N156HCE-G72
- KR1V0
Compatible Devices
- Latitude 5530
Tips for Matching and Fitting a Replacement Laptop Screen
The part number on the label on the back of your old screen is the surest match: any part number listed above will fit. If you can’t read the label, compare the size, resolution, connector (number of pins and where the socket sits), mounting brackets and surface finish with the details above, and check whether your current screen is a touch screen. Send us the part number or your laptop model and we’ll confirm the fit before you order.
When fitting, switch the laptop off and disconnect the battery first. Lift the connector tape gently, keep fingers off the panel surface, and test the new screen before you clip the bezel back on.
