Description
Mercusys 5-Port Gigabit Desktop Switch – IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD Standards and Protocols, 5 ×10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX Interfaces, 5V/0.6A External Power, Desktop Wall Mount Installation, 1Mbit Buffer Capacity, 9KB Jumbo Frame, Store and Forward Transfer Method, Plug and Play, Retail Box, 6 Months Warranty.
Product Overview

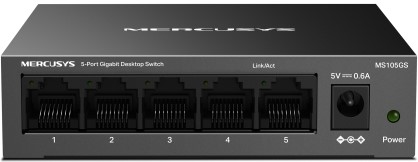

Mercusys MS105GS 5-Port Gigabit Desktop Switch Compact 5-port unmanaged switch (3.92 × 3.86 × 0.99 in) supporting IEEE 802.3/u/x standards, 10/100/1000 Mbps speeds (up to 2000 Mbps full duplex), and plug-and-play setup with desktop/wall mount. Features 1 Mbit buffer, 9 KB jumbo frames, 802.3x flow control, IGMP snooping, QoS prioritization, and Green Ethernet for efficient home/office networking. Powered by 5V/0.6A adapter; operates in 0°–40°C with LED indicators for ports/power—ideal for reliable, high-speed Gigabit connections.
Features
•Full Gigabit Ports: 5× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
•Multiple Installation Operation: Steel housing, desktop or wall-mounting design
•Durable Metal Casing: Allows for efficient heat dissipation and long network life
•Plug and Play: Simple to use and saves time and effort
•Power Saving: Green Ethernet technology saves power
Specifications
•Product Code: MS105GS
•Description: Mercusys 5-Port Gigabit Desktop Switch
•Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
•Interfaces: 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
•External Power Supply: 5V/0.6A
•Installation: Desktop, Wall Mount
Data Rates
•10/100/1000 Mbps at Half Duplex
•20/200/2000 Mbps at Full Duplex
•Buffer Capacity: 1Mbit
•Jumbo Frame: 9KB
•LED: Ethernet Ports (1, 2, 3, 4, 5), Power
Software
•Transfer Method: Store and Forward
•Management: Plug and Play
Advanced Features
•802.3x Flow Control
•802.1P/DSCP QoS
•IGMP Snooping V1/V2/V3
•Green Ethernet
•Environment: 0°℃~40°℃ (32°F~104°F)/10% ~ 90% RH, Non-Condensing
