Description

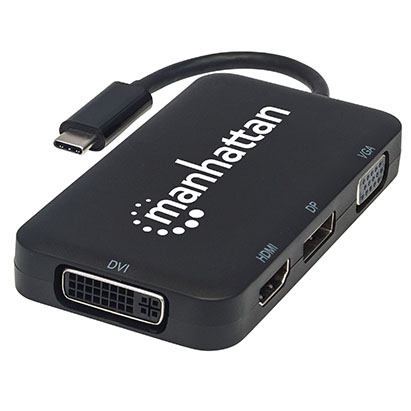

Manhattan USB-C 4-in-1 Audio/Video Converter – USB 3.1 Type-C Male to HDMI/DP/VGA/DVI Female, Black, Retail Box, Limited Lifetime Warranty.
Product Overview
The Manhattan USB-C 4-in-1 Audio/Video Converter establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (computers, tablets, Smartphones, etc.) and existing HDMI, DisplayPort, VGA or DVI displays (monitors, projectors, etc.). The Manhattan USB-C 4-in-1 Audio/Video Converter is easy and quick to install — no complicated configuration or setup required. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly. Extend the service life of your equipment, and fully realize the investment and value of your HDMI, DP, VGA or DVI displays, projectors and peripherals with a Manhattan USB-C 4-in-1 Audio/Video Converter.
• 4-in-1 adapter converts USB to an HDMI, DP, VGA or DVI video and audio signal
• Offers Ultra-High-Definition (UHD) images on an HDMI monitor, projector or other display device
• Supports video resolutions up to: 3840×2160 at 30 Hz (4K) in HDMI, 4K@60Hz UHD in DP or 1920×1080 at 60 Hz in VGA or DVI
• Compliant with DisplayPort 1.2 Alternate Mode (DP Altmode)
• Plug and Play; requires no external power supply
• Compatible with all USB Type-C, DP Alt mode and Power Deliver 2.0 supported desktops, notebooks and tablets including Apple MacBook, Chromebook Pixel and more
• Compact, portable design; perfect for traveling and connecting to any display
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Product Code: 152600
• Description: Manhattan USB-C 4-in-1 Audio/Video Converter
• USB 3.1
• HDMI
• HDCP 1.4
• CE
• FCC
• RoHS2
• WEEE
• Video Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1080, 1920 x 1200, 3840 x 2160 at 30 Hz, 4K@60Hz
• 32 AWG connectors
• Shielding: Mylar and aluminum
• Withstanding voltage: 300 V DC
• Insulation resistance: 5 MΩ
• Conductive resistance: 10 Ω
• Supports one output at a time
• If multiple connections are made, port priority will be DP>HDMI>DVI>VGA
• Note: DVI and VGA do not support Audio
• USB Type-C 24-pin, male
• HDMI 19-pin, female
• DP 20-pin, female
• DVI Single Link, 29-pin, female
• VGA 15-pin, female
• Shielded
• 32 AWG cable gauge
• Mylar and aluminum shielding
• Thermal plastic casing
• Length: 8 cm (3 in.)
• Weight: 31 g (1.1 oz.)
• Shielded
• Housing: ABS plastic
• Operation Temperature: 32 – 122°F (0 – 50°C)
• Storage Temperature: -22 – 176°F (-30 – 80°C)
• Humidity (noncondensing): 5 – 90%
• System Requirements
• Windows 8.1/10 or Linux or Mac 10.10.5 or above
• USB-C 4-in-1 Audio/Video Converter
• Quick Instruction Guide
