Ordering a replacement laptop panel based solely on your device’s model number is a gamble that often ends in a frustrating and costly return process. While two laptops might look identical on the outside, their internal hardware often dictates very different requirements. Understanding the 40 pin vs 30 pin laptop screen connector distinction is the only way to guarantee your new display functions correctly the moment you install it.
It’s natural to feel concerned about technical jargon like eDP 1.5 or LVDS standards when you just need your screen to work. We know that shipping an incorrect part back and forth creates unnecessary delays and extra expenses that disrupt your productivity. This guide provides the definitive steps to identify your connector type with absolute certainty before you click the buy button. We’ll explain exactly why these configurations aren’t interchangeable and how to use the model number on your original LCD to ensure a perfect match every time. By the end of this article, you’ll have the confidence to choose the right panel and get your hardware back in peak operational condition.
Key Takeaways
- Distinguish between connectors by measuring physical width; a 30-pin connector is roughly 20mm wide, while a 40-pin version measures approximately 25mm.
- Understand that the choice between a 40 pin vs 30 pin laptop screen connector depends on whether your display supports touch features or high-resolution 4K output.
- Identify your exact LCD model number and connector type using diagnostic software to avoid disassembling your device prematurely.
- Recognize that these connector types are not interchangeable because they utilize different numbers of eDP data lanes to manage specific bandwidth requirements.
- Ensure a successful repair by sourcing verified laptop LCD replacement panels from local suppliers who confirm compatibility before dispatch.

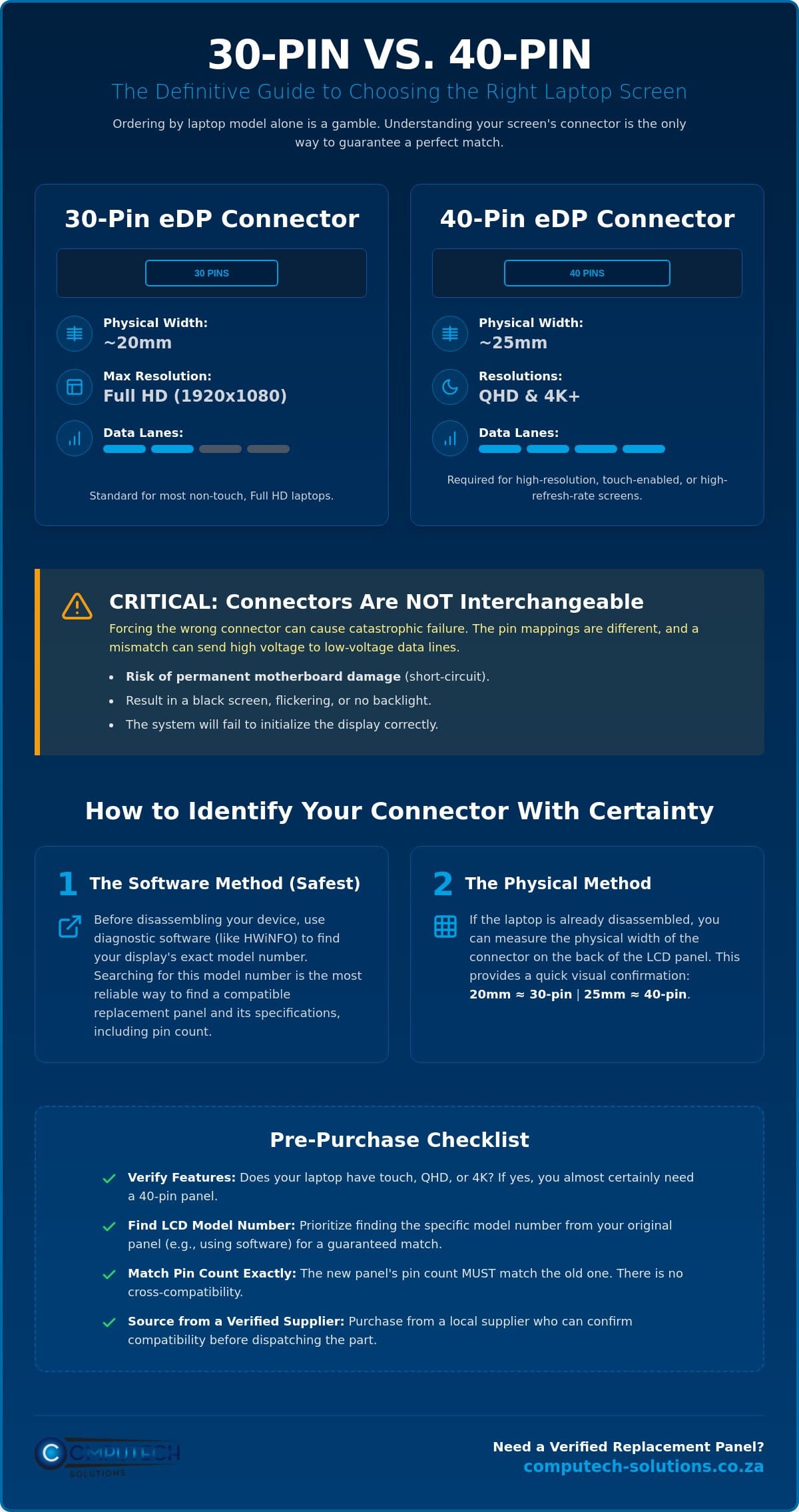

What is the Difference Between 30-Pin and 40-Pin Screen Connectors?
The primary difference between these connectors lies in the bandwidth they provide for data transmission. Modern laptops utilize the Embedded DisplayPort (eDP) interface to send signals from the motherboard to the display panel. When comparing a 40 pin vs 30 pin laptop screen connector, you aren’t just looking at more wires; you’re looking at the capacity for higher resolutions, faster refresh rates, and additional features like touch sensitivity. Physical dimensions are the most immediate way to tell them apart. A 30-pin connector typically measures approximately 20mm in width, whereas a 40-pin connector is wider, measuring roughly 25mm.
These components aren’t interchangeable. Each pin has a specific mapping for power, ground, and data lanes. Plugging a 30-pin cable into a 40-pin socket, even if you could force the fit, would result in mismatched voltage delivery. The video cable acts as the critical bridge in this system. It’s engineered to match the specific pinout of your motherboard and the Laptop display interfaces used by the manufacturer. If you replace a panel with one that has a different pin count, the existing cable won’t support it, and the system won’t initialize.
The Evolution from LVDS to eDP
Before eDP became the industry standard, laptops used Low-Voltage Differential Signaling (LVDS). While LVDS also featured 40-pin configurations, it’s fundamentally incompatible with modern eDP panels. The shift to eDP was driven by the need for higher performance and lower power consumption. It allows for thinner cables and smaller connectors, which is essential for the slim profiles of 2026 laptop models. Today’s hardware almost exclusively uses eDP because it handles the massive data requirements of modern high-definition video with much greater efficiency than older standards.
Why Pin Count Matters for Your Repair
Accuracy is vital when dealing with a 40 pin vs 30 pin laptop screen connector during a repair. Forcing the wrong connector can lead to catastrophic hardware failure. If the pin mapping doesn’t align, you risk sending high voltage meant for the backlight into a low-voltage data line on the motherboard. This often results in a short-circuit that can permanently damage your laptop’s main logic board. Beyond the risk of hardware death, the wrong pin count simply won’t work. You’ll likely face a black screen, flickering, or a complete lack of backlight. Always follow the golden rule of laptop repair: you must match the pin count of your original panel exactly to ensure a safe and successful installation.
Technical Breakdown: Resolution, Touch, and Data Lanes
The pin count on your display interface is a direct indicator of the bandwidth available to the panel. While a 30-pin connector is the standard for Full HD (1920×1080) displays, it’s limited to one or two eDP data lanes. Data lanes are the highway for video information. If you attempt to install a higher-resolution panel, the physical limitations of the 30-pin interface simply cannot provide enough throughput to drive the extra pixels. This is why standard 1080p laptops almost never support a plug-and-play upgrade to 4K without a complete motherboard and cable overhaul.
Stepping up to a 40 pin vs 30 pin laptop screen connector is necessary when your requirements exceed standard definitions. The 40-pin configuration typically supports four eDP data lanes, providing the massive bandwidth required for QHD (2560×1440) or 4K (3840×2160) resolutions. Beyond resolution, these extra pins often facilitate high-speed camera signals or specialized refresh rates. Understanding the technical differences between LVDS and eDP helps clarify why modern systems prioritize these pin-dense eDP connections for high-performance visual output.
Attempting to “over-spec” your laptop by installing a 4K screen on a system originally designed for 1080p is a common mistake. Even if you find a panel that physically fits the bezel, the internal video cable and the motherboard’s display controller are often hard-wired for a specific lane count. A 1080p cable usually lacks the physical wiring for the third and fourth data lanes needed for UHD. This mismatch results in a “no signal” error or a corrupted image that won’t resolve correctly.
High Resolution Requirements (QHD & 4K)
Driving 3840×2160 pixels requires a significant jump in data transfer speeds compared to standard HD. A 4K display refreshes millions of pixels sixty times per second, necessitating the four-lane architecture found in 40-pin eDP setups. A 30-pin connector physically lacks the pins required to carry these additional signals. This technical bottleneck is why manufacturers must switch to the wider 40-pin interface for any premium or high-density display panel.
Touchscreen Integration and Proprietary Pins
Touchscreen functionality adds another layer of complexity to the 40 pin vs 30 pin laptop screen connector debate. In many designs, the touch data is multiplexed into the extra ten pins of a 40-pin connector rather than using a separate USB cable. This is common in “In-Cell” and “On-Cell” touch technologies where the touch sensors are integrated directly into the LCD layers. Interestingly, gaming laptops with 144Hz or 240Hz refresh rates also use 40-pin connectors. Even without touch features, these panels need the extra lanes to push high frame rates at 1080p or 1440p resolutions. If you’re currently searching for laptop LCD replacement panels, verifying these technical specs is the best way to ensure your new screen matches your specific hardware capabilities.
40-Pin vs 30-Pin: A Detailed Comparison Table
Identifying the correct interface requires more than a quick glance at the cable. While physical width is the most obvious differentiator, the technical specifications mapped to each pin count determine whether a replacement panel will actually function. Use the following table as a definitive reference to distinguish between a 40 pin vs 30 pin laptop screen connector and ensure your hardware remains compatible.
| Feature | 30-Pin Connector | 40-Pin Connector |
|---|---|---|
| Physical Width | Approx. 20mm | Approx. 25mm |
| Max Resolution | 1920 x 1080 (Full HD) | 3840 x 2160 (4K/UHD) |
| Refresh Rate | Standard 60Hz | 120Hz, 144Hz, 240Hz+ |
| Touch Support | Generally No | Integrated Touch Support |
| Data Lanes | 1 or 2 Lanes | 4 Lanes |
Quick-Reference Compatibility Matrix
Budget and standard business laptops typically utilize the 30-pin configuration because it’s cost-effective and provides sufficient bandwidth for 1080p productivity tasks. If your laptop is a non-touch model used for general office work, it likely uses this standard. High-performance machines, including gaming rigs and creative workstations, require the 40-pin interface to handle QHD or 4K resolutions and high refresh rates. Some premium ultrabooks use “hybrid” cables that might look smaller but utilize high-density 40-pin layouts to save space while maintaining touch functionality. Always check the voltage requirements; while most logic circuits operate at 3.3V, the power delivery for high-brightness backlights on 40-pin panels can be significantly more demanding.
Visual Identification Markers
Look closely at the gold-plated contact points on the connector. On a 30-pin interface, the spacing (or pitch) is standard, but the overall footprint is noticeably narrower. A 40-pin connector often features a small metal locking bar that snaps into place to prevent the cable from wiggling loose during movement. This is a common safety feature on high-refresh-rate gaming panels. You should also examine the labels on the back of your original panel. You’ll often see “eDP 1.2” on 30-pin models, while 40-pin panels frequently carry “eDP 1.4” or “eDP 1.5” markings. These labels indicate the version of the Embedded DisplayPort standard, with higher versions supporting the increased bandwidth that 40 pins provide. If you’re unsure, matching these labels is just as critical as counting the pins themselves.
How to Identify Your Connector Without Opening the Laptop
Determining your connector type doesn’t always require a screwdriver and a steady hand. Many users fear they must disassemble their device just to see a label, but software-based methods offer a cleaner, more efficient solution. By extracting the hardware ID directly from the system firmware, you can distinguish between a 40 pin vs 30 pin laptop screen connector with clinical precision. This non-invasive approach protects your warranty and prevents accidental damage to the delicate plastic clips around your screen bezel.
Using Software for Non-Invasive Identification
Professional technicians rely on diagnostic tools like HWiNFO or AIDA64 to pull internal component data. Once you launch HWiNFO, navigate to the “Monitor” section in the hardware tree. Look specifically for the “Monitor Name” and “Model” fields. You’ll see a string like “B156HAN02.1” or “N156HGE-EA1”. This isn’t just a random code; it’s the manufacturer’s SKU for the LCD panel itself. If you don’t want to install third-party software, Windows Device Manager provides a basic alternative. Right-click your Generic PnP Monitor, select “Properties,” and under the “Details” tab, choose “Hardware Ids” from the dropdown menu.
The Hardware ID is the most reliable way to find your pin count online. Once you have this specific model number, you can cross-reference it with professional databases like PanelLook. These databases list every technical specification, including the eDP version and the exact pin count. This step eliminates the guesswork often associated with general laptop model numbers, which can vary significantly even within the same product line.
The ‘Spec-Sheet’ Method
If your laptop won’t power on to run software, your next logical step is the manufacturer’s support site. By entering your unique serial number or service tag on the OEM portal, you can access the “As-Shipped” configuration list. Look for keywords like “Touch,” “UHD,” or “4K” in the display description. As established in our technical breakdown, these premium features are almost exclusive to the 40-pin standard. Standard 1080p non-touch screens typically stay within the 30-pin limit.
Be wary of “optional” upgrades. Manufacturers often use the same chassis for multiple versions of a laptop. If your specific unit was the budget-friendly version, it likely uses a 30-pin cable and motherboard port, even if a 4K 40-pin version of that laptop exists. Trusting the general model name is risky; always verify the specific parts list provided by the OEM for your unique serial number. In some rare cases, a small service hatch on the bottom of the laptop or a gap near the hinge might reveal a white label on the video cable. If you can see a part number on that cable, a quick search will confirm if it is a 40 pin vs 30 pin laptop screen connector. If you’ve confirmed your requirement, you can safely browse our laptop LCD replacement panels to find the exact match for your repair.
Sourcing Replacement LCD Panels in South Africa
Sourcing the correct hardware within South Africa requires a strategic approach to avoid lengthy international shipping delays and complex customs procedures. When you’re dealing with the 40 pin vs 30 pin laptop screen connector choice, a local partner provides the necessary safety net for your investment. Local suppliers understand the specific model variations found in the South African market, ensuring that the part you receive is compatible with local regional SKUs. This proximity also simplifies the return process, which is often prohibitively expensive when dealing with overseas retailers.
Computech-Solutions implements a rigorous verification protocol to eliminate the risk of ordering incompatible parts. We cross-reference your specific laptop model and original panel ID before any part leaves the warehouse. This ensures that the technical specifications, from the 40 pin vs 30 pin laptop screen connector count to the signaling standard, align perfectly with your motherboard’s output. Beyond the connector, you must also verify the mounting bracket style. Some panels use top and bottom screw tabs, while others rely on side-mounting configurations or even adhesive strips. A panel with the correct pin count but the wrong mounting style remains unusable for a standard installation.
Quality standards in the South African market are typically divided into Grade A and Grade B classifications. Grade A panels are the industry gold standard, typically featuring no dead pixels and pristine surface finishes. Grade B panels may have minor cosmetic imperfections but offer a functional, budget-friendly alternative for older machines. We prioritize high-grade stock to ensure your visual experience isn’t compromised after the repair is complete.
Why Professional Technical Support Matters
Professional technical support is the most effective way to reduce device downtime. Our team understands the nuances of local stock availability and provides nationwide delivery to ensure you aren’t left waiting for critical components. Expert verification prevents the frustrating cycle of purchasing and returning parts that don’t fit. By having an expert confirm your model number before you pay, you protect your business from the operational risks associated with extended hardware failure.
The Total Solution: Beyond the Screen
A screen failure is often a sign that a device is reaching a significant service milestone. While you’re replacing the LCD, it’s a practical time to inspect your video cable for fraying or check if your backlight inverter is functioning correctly. It’s often more efficient to bundle your order with other essential components to restore the device to its full capacity. We stock a wide variety of Acer, Dell, HP, and Lenovo replacement laptop batteries, along with high-quality laptop chargers, so you can address power issues and display failures in one go. Computech-Solutions offers a comprehensive range of laptop LCD replacement panels with technical guidance to ensure your hardware restoration is successful on the first attempt.
Restore Your Laptop Display with Confidence
Distinguishing between a 40 pin vs 30 pin laptop screen connector is the critical first step toward a successful hardware repair. By focusing on physical measurements, data lane requirements, and software-based identification, you eliminate the risk of ordering incompatible parts. These interfaces are not interchangeable because they serve different bandwidth needs, ranging from standard office productivity to high-resolution creative work and high-refresh gaming. Identifying your specific hardware ID ensures that your new panel matches your motherboard’s technical output perfectly.
Choosing a reliable partner for your replacement components ensures your device returns to service without unnecessary delays. We provide expert technical support for South African customers to verify your model before dispatch, backed by reliable nationwide shipping and high-quality hardware for all major brands. Browse our full range of Laptop LCD Replacement Panels with nationwide delivery today to secure the exact display your system requires. With the right identification and a professional supplier, your laptop restoration is a straightforward and predictable process.
Frequently Asked Questions
Can I upgrade my 30-pin screen to a 40-pin 4K screen?
No, you cannot simply swap a 30-pin screen for a 40-pin 4K version. The motherboard and video cable are engineered for a specific number of data lanes. A 30-pin interface is physically limited to two lanes, while 4K resolution requires a four-lane 40-pin setup. Attempting this upgrade would require replacing the entire video cable and potentially the motherboard, making it a non-viable modification for most users.
Are all 40-pin connectors the same size?
No, 40-pin connectors vary in size depending on the underlying technology. A modern 40-pin eDP connector is roughly 25mm wide, but older 40-pin LVDS connectors are much wider and physically incompatible. It’s vital to verify the signaling standard because a 40 pin vs 30 pin laptop screen connector comparison only matters if both panels utilize the modern eDP interface.
What happens if I plug a 30-pin cable into a 40-pin screen?
Plugging a 30-pin cable into a 40-pin screen will likely result in a black display or catastrophic hardware failure. The pin assignments for power, ground, and data don’t align between these two standards. You run a high risk of sending backlight voltage into a low-voltage data line, which can instantly destroy the display controller on your laptop’s motherboard.
Do I need to replace the video cable if I change my screen type?
Yes, but replacing the cable is rarely enough to change screen types. Most laptop motherboards feature a fixed port that only accepts one specific cable type. If your motherboard was built with a 30-pin port, it won’t have the physical pins or traces needed to support a 40-pin cable. You must stick to the connector type originally installed in your device.
How can I tell if my laptop screen is eDP or LVDS?
You can identify the interface by checking the device’s manufacturing date and the physical width of the connector. Laptops manufactured after 2015 almost exclusively use the eDP standard. LVDS connectors are noticeably larger and use thicker, twisted-pair wiring. Cross-referencing your panel’s model number on a technical database remains the most reliable method for confirmation.
Why does my 40-pin laptop only have 30 wires in the cable?
Manufacturers often use a standard 40-pin connector shell for production consistency but only populate the wires needed for your specific panel. If your laptop features a non-touch, standard-resolution screen, the extra wires for touch data or additional lanes aren’t required. This results in a cable that appears to have “empty” slots despite having a 40-pin plug at the end.
Is it cheaper to buy a 30-pin screen than a 40-pin screen?
Generally, 30-pin screens are more cost-effective because they are designed for standard Full HD resolutions and 60Hz refresh rates. 40-pin screens carry a higher price tag due to integrated touch layers, 4K resolution support, or high-refresh-rate gaming technology. When evaluating a 40 pin vs 30 pin laptop screen connector, the price difference reflects the advanced bandwidth and hardware features of the panel.
Where can I find the model number on my laptop screen?
The model number is printed on a white sticker located on the back of the LCD panel. You’ll need to remove the screen from the laptop bezel to access this information. Look for a string of characters starting with letters like “B,” “LP,” or “N,” followed by three numbers that match your screen size, such as “B156” for a 15.6-inch display.
