Description

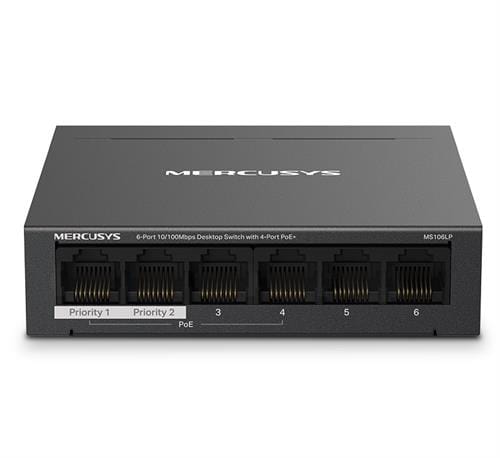

Mercusys MS106LP 6-Port Desktop Switch with 4-Port PoE+ , Retail Box , 2 year Limited Warranty
Product Overview
The Mercusys MS106LP 6-Port Desktop Switch features six 10/100 Mbps RJ45 ports, including four PoE+ ports that deliver both data and power over a single cable, supporting up to 30 W per port. With an isolation mode for enhanced security and stability, it provides long-range PoE transmission up to 250 meters, making it ideal for various network setups.
Features
•6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports
•Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
•High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*
•2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
•Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
•Isolation Mode: One click to divide traffic for specific ports for stability and security
•Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Specifications
•Product code: MS106LP
•Description: Mercusys MS106LP 6-Port Desktop Switch with 4-Port PoE+
•Dimensions 99.8*98*25mm
•PoE Ports
•RJ45
•Standard: Compliant with 802.3 af/at Powered Devices
•PoE Ports: Port 1- Port 4
•PoE Power Budget: 40 W
•Interfaces
•6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
•External Power Supply
•External Power Adapter (Output: 53.5V/0.81A)
•Standards and Protocols
•IEEE 802.3x Flow Control
•Data Rates
•10/100 Mbps at Half Duplex
•20/200 Mbps at Full Duplex
•Jumbo Frame
•2 KB
•Mac Address Table
•2K
•Max Power Consumption
•1.87W（220 V / 50 Hz, no PD connected）
•44.8W（220 V / 50 Hz, with 40W PD connected）
•Max Heat Dissipation
•6.34 BTH/h （no PD connected)
