Description

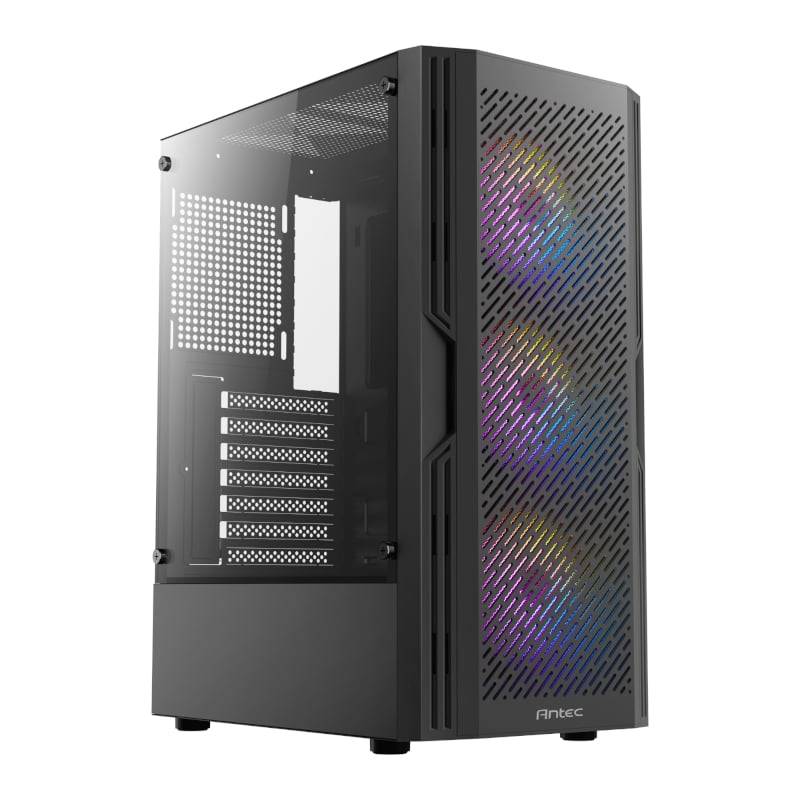

The Antec AX20 is a stunning combination of innovative design and tremendous cooling capabilities. The Antec AX20 is built to achieve great heat dissipation, ensuring your system stays cool under any workload, thanks to its slanted bar air intake design and dense mesh structure.
The half-view tempered glass side panel provides a touch of class, allowing you to proudly display your gaming setup without any obstructions. The AX20 is designed for versatility, since it can take up to 8 x 120mm fans at the same time, providing a wide range of cooling solutions to fit your needs.
With the Antec AX20’s dense mesh structure, you can unleash a torrent of airflow while successfully minimising dust buildup and maximising cooling performance. Massive air intakes strategically placed in the front, top, and bottom generate different airflow routes, promoting a constant supply of fresh air throughout your system.
FEATURES:
- High-Airflow and Ventilation
- Tempered Side Glass Panel
- Slanted Bar Air Intake Design
- 3x 120mm RGB Front Fans
- Powerful Heat Dissipation
- ATX Motherboard Support
SPECIFICATIONS:
- Form Factor: Mid Tower
- Materials: Steel + Plastic
- Mainboard Support: ATX, Micro-ATX, ITX
- Front Access & Controls: Power, Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO
- Side Panel: 4mm Tempered glass
- Drive Bays: Expansion Slots: 7, 3.5″ /2.5″ – 2 / 1, 2.5″- 2
- Fan Support:
- Front: 3 x 120mm / 3 x 140mm
- Top: 3 x 120mm / 2 x 140mm
- Rear: 1 x 120mm
- Side:
- Power Supply Shroud: 2 x 120mm
- Rear: 1 x 120mm
- Included Fan(s): 3 x 120 RGB fixed model fans in front
- Radiator Support:
- Front: 120/140/240/360mm
- Clearance:
- Max GPU Length: ≤ 270mm
- Max CPU Cooler Height: ≤ 155mm
- Max PSU Length: ≤ 170mm(with HDD), ≤ 295mm(without HDD)
- Product Dimensions: 35.8 x 21 x 45.2 cm
- Product Weight: 4000g
WHAT’S IN THE BOX:
- Antec AX20 ATX RGB Mid-Tower Gaming Chassis – Black x1
