Description

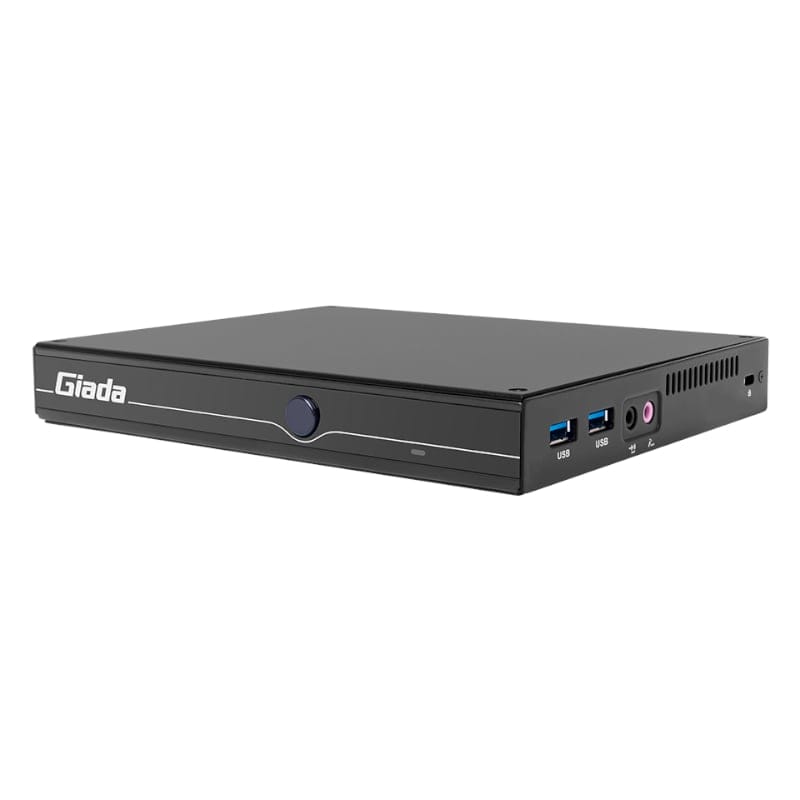

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.
FEATURES:
- Intel® Celeron® N5100 Processor
- 1 x DP, 1 x HDMI, Supporting 4K Display
- Onboard LPDDR4 4GB
- 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT
- Long life cycle
- Fanless Design
SPECIFICATIONS:
- Processor:
- CPU: Intel® Celeron® N5100 processor (Fanless)
- Turbo Frequency: 2.80 GHz/2.90 GHz
- Chipset: SoC
- Processing Units: 4 Cores/4 Cores
- Memory:
- Type: Onboard LPDDR4-2666 MHz
- Size: 4GB
- Storage Supported:
- Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)
- Socket 2: 1 x Full-size Mini-PCIe for MSATA
- Graphics:
- GPU: Intel® UHD Graphics
- Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2
- DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
- HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
- Network:
- Controller: Realtek RTL 8111H Gigabit Ethernet
- Interface: 2 x RJ45
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
- Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
- I/O:
- USB: 2 x USB3.2 Gen2, 4 x USB2.0
- Serial Port: 1 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)
- Button: 1 x Power on, 1 x CLR-CMOS
- System:
- TPM: TPM2.0
- Watchdog Timer: Yes
- Auto Power on: Yes
- RTC: Set up independently every day
- Remo on: Yes
- Fanless: Yes
- Operation System:
- Windows: Windows 10 (64Bit), Windows 11 (64bit)
- Linux: Linux Ubuntu (64bit)
- Power:
- Power Type: DC-IN
- Input Voltage: 19V/2.37A
- Environment:
- Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
- Relative Humidity: 95% @ 45°C (non-condensing)
- Certification: CE, FCC Class B
- Construction: Metal
- Fanless: Yes
- Colour: Black
- Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT’S IN THE BOX:
- Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB – Black x1
- Wi-Fi Antenna x2
- AC Power Adapter x1
- Power Cable x1
- User Manual x1
