Description

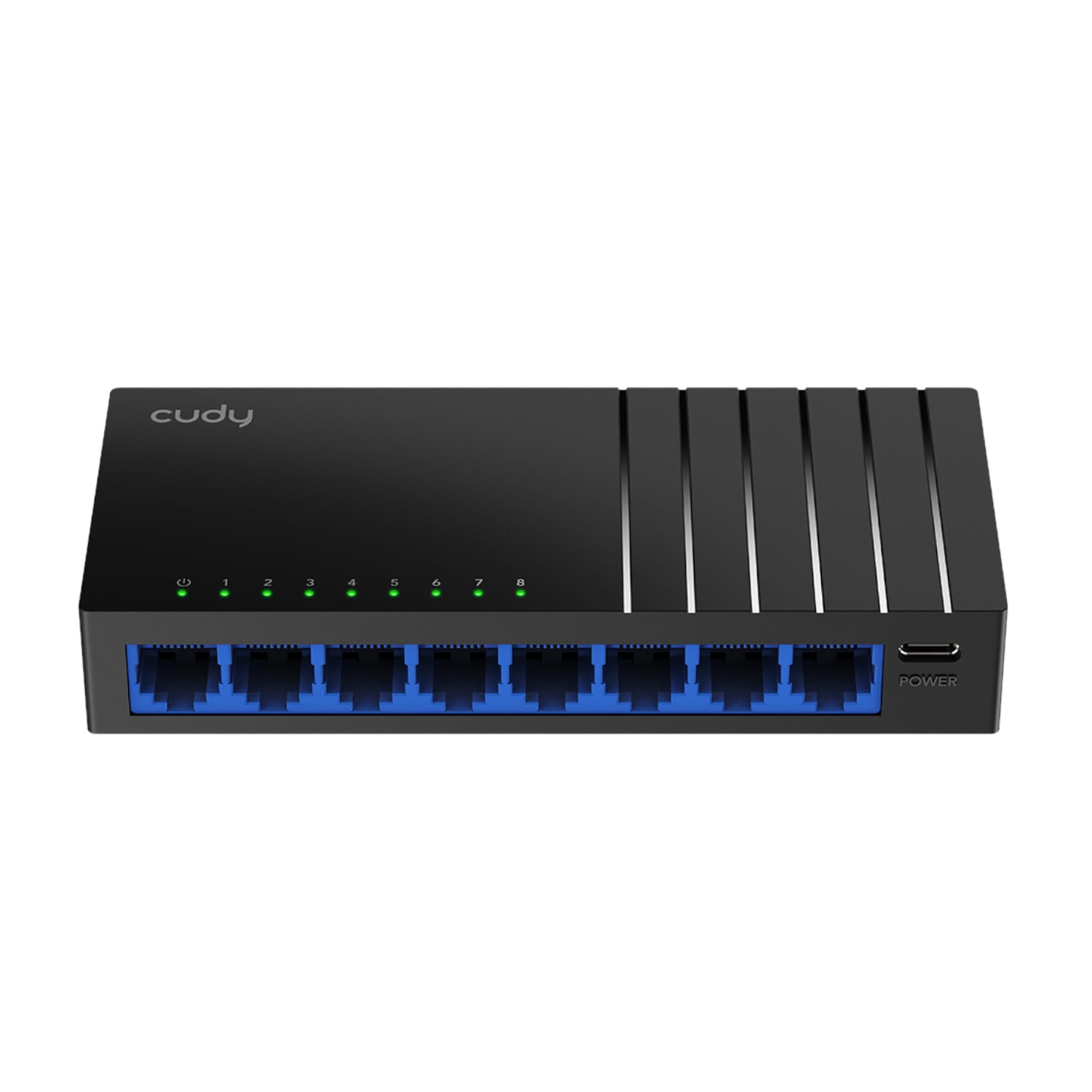

The Cudy 8-Port Gigabit Desktop Switch is a reliable and power-efficient solution for connecting office computers to a wired network. With eight fast Ethernet ports and a 170m maximum transmission distance, it ensures seamless and extended connectivity. The switch features a 1 Mbit packet buffer to prevent packet loss, enhancing network reliability. Its compact design allows for easy placement in telecommunications or cable boxes, and it includes two mounting holes for convenient wall-mounting. Consuming only 4W at maximum power and 1.18W in standby, this switch is super power-efficient, making it ideal for both desktop and wall-mounted installations.

FEATURES:

• 8×Fast Ethernet Ports
• Max 170m Transmission
• 1 Mbit Packet Buffer
• Powering via USB Type-C
• Desktop, Wall-Mount

SPECIFICATIONS:

• Interfaces
• Gigabit RJ45 Ports: 8
• LED:
  • Power
  • Link/ACT of Each Ethernet Port
• Performance
• Max Copper Speed and Distance:
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 170 meters at Gigabit
• MAC Address Table: 4096
• Max Switching Capacity: 16 Gbps
• Max Forwarding Rate: 11.904 Mpps
• Jumbo Frame: 9 KB
• Packet Buffer: 1 Mbit
• Power
• Power Input Type: USB Type-C Port
• Basic Power Saving: Yes
• Power Methods: USB Type-C
• Power Input: 5V⎓
• Max Power Consumption: 4W
• Idle Power Consumption: 1.18W
• Switching
• 802.3 Protocols:
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
• Reliability
• EMS:
  • EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
  • IEC/EN 61000-4-5, Level 3 Surge: 2kV
• Environment:
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing
• Casing Material: Plastic
• Installation:
  • Desktop
  • Wall-mount
• Product Dimensions: 13.8 x 6.1 x 2.4 cm
• Product Weight: 85g

WHAT’S IN THE BOX:

• Cudy GS108D 8-Port Gigabit Desktop Switch (USB Type-C Power) – Black x1
• USB-A to USB Type-C Power Cable
• Quick Install Guide x1
