Description

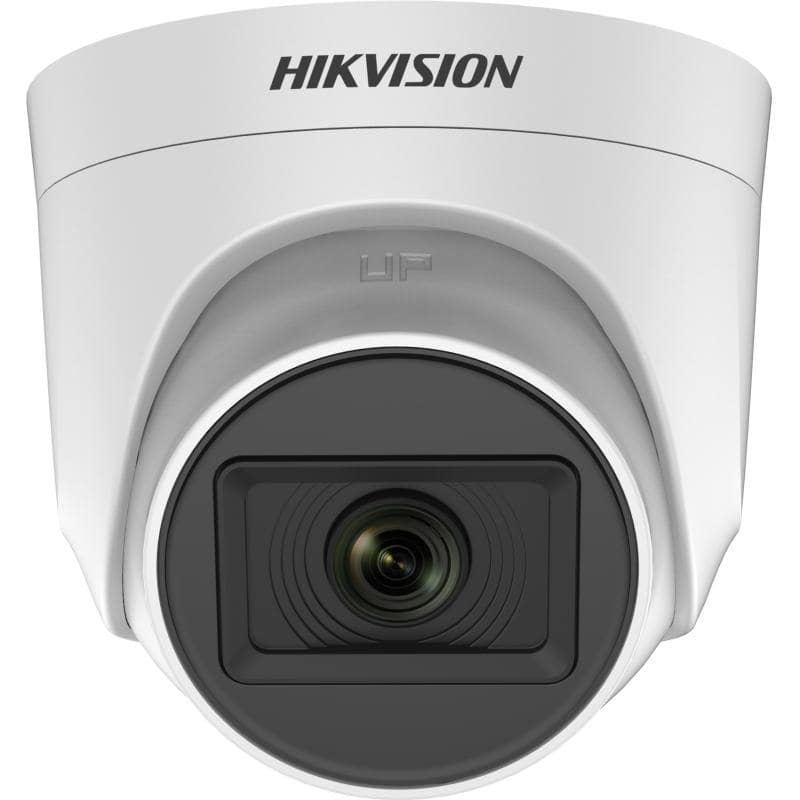

Hikvision 2 MP Indoor Fixed Turret Camera – High quality imaging with 2 MP, 1920 × 1080 resolution, 2.8 mm, 3.6 mm fixed lens, Up to 20 m IR distance for bright night imaging, One port for four switchable signals, 12 VDC ± 25%, Max. 3.3 W, Retail Box,
Product Overview
The security camera features a 2 MP CMOS Image Sensor with a maximum resolution of 1920 × 1080 supporting PAL/NTSC signal systems. It offers Day & Night IR Cut Filter operation, wide-angle lenses (2.8mm or 3.6mm), and up to 20m illumination range for clear images in various conditions. With switchable TVI/AHD/CVI/CVBS video output, digital WDR, and 2D noise reduction, it delivers enhanced image quality in harsh environments.
Features
•High quality imaging with 2 MP, 1920 × 1080 resolution
•2.8 mm, 3.6 mm fixed lens
•Up to 20 m IR distance for bright night imaging
•One port for four switchable signals (TVI/AHD/CVI/CVBS)
Specifications
•Product Code: DS-2CE76D0T-EXIPF2.8MM
•Description: Hikvision 2MP Indoor Fixed Turret Camera
Camera
•Image Sensor: 2 MP CMOS
•Signal System: PAL/NTSC
•Max. Resolution: 1920 (H) × 1080 (V)
•Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
•PAL: 1/25 s to 1/50,000s
•NTSC: 1/30 s to 1/50,000s
•Day & Night: IR Cut Filter
Angle Adjustment
•Pan: 0° to 360°
•Tilt: 0° to 75°
•Rotation: 0° to 360°
Lens
•Lens Type: 2.8 mm, 3.6 mm Fixed Lens
Focal Length & FOV
•2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
•3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
•Lens Mount: M12
Illuminator
•Supplement Light Range: Up to 20 m
Image Frame Rate
•TVI: 1080p@25fps/30fps
•AHD: 1080p@25fps/30fps
•CVI: 1080p@25fps/30fps
•CVBS: PAL/NTSC
•Wide Dynamic Range (WDR): Digital WDR
•Image Parameters Switch: STD/HIGH-SAT
•Day/Night Mode: Auto/Color/BW (Black and White)
•White Balance: Auto
•Image Enhancement: DWDR, BLC, Global
•Noise Reduction: 2D DNR
•Image Settings: Brightness, Mirror, Smart IR, Sharpness, AGC
Interface
•Video Output: Switchable TVI/AHD/CVI/CVBS
General
•Language: English
•Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
•Material: Plastic
•Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
•Approx. 195g (0.43 lb.)
•Power: 12 VDC ± 25%, Max. 3.3 W
