Description

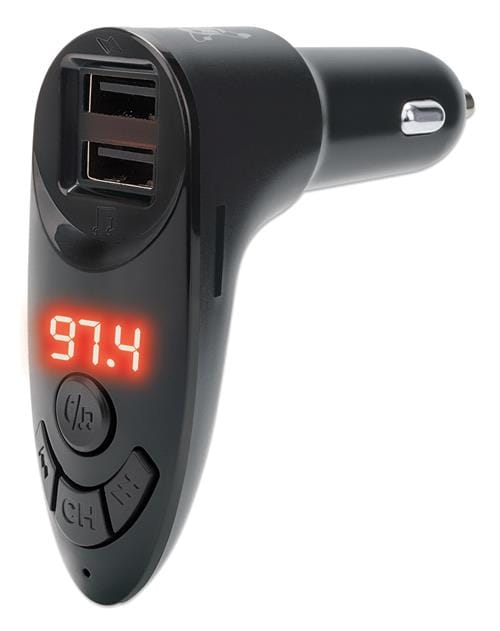

Manhattan Bluetooth FM Transmitter with Dual USB Ports – Wireless range up to 5m, FM frequency support 87.5–108.0 MHz, frequency response 20Hz–15kHz, supports MP3/WMA/WAV/FLAC formats, dual USB charging ports (5V/2.1A and 5V/1A), USB-A and micro-SD slots for data up to 32GB, built-in protection against short circuit, overvoltage, overcurrent, and overheating, DC input 12–24V, includes remote control, compact design (79 x 29 x 75mm), lightweight 28g, retail packaging.
Product Overview
Highlights
• Bluetooth® 5.0 for hands-free calls, GPS voice assistance and music in your car
• Two USB-A ports delivering up to 5 V at 2.1 A and 1 A
• Integrated microphone and controls for calls and music
• USB-A port for MP3 playback
• MicroSD card slot for MP3 playback
• Fits most vehicles’ 12 – 24 V auxiliary power socket
• Optional remote control included
Specifications:
General
• Stock Code: 102315
• Description: Manhattan Sound Science Bluetooth FM Transmitter with 2
• Wireless range: 5 m (14 ft.)
• FM radio frequencies: 87.5 – 108.0 MHz
• Frequency response: 20 Hz – 15000 Hz
• Supported audio formats: MP3/WMA/WAV/FLAC
• Dimensions: 79 x 29 x 75 mm (3.11 x 1.14 x 2.95 in.)
• Weight: 28 g (0.99 oz.)
Power
• DC input: 12.0 – 24.0 V; 50 – 60 Hz
• Voltage/current:
– USB-A port 1 output: 5.0 V / 2.1 A
– USB-A port 2 output: 5.0 V / 1 A
• Remote control battery: CR 1220, Lithium, 3 V
Protection Characteristics
• Short circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) — current limit: 150% (max)
• Over-temperature (OTP)
Connections
• USB-A charging Port 1 with 5.0 V / 2.1 A
• USB-A charging Port 2 with 5.0 V / 1 A
• USB-A port for data up to 32 GB
• Micro-SD slot for data up to 32 GB
Package Contents
• Sound Science Bluetooth® FM Transmitter with 2-Port Car Charger
• Remote control
• Instructions
