Description

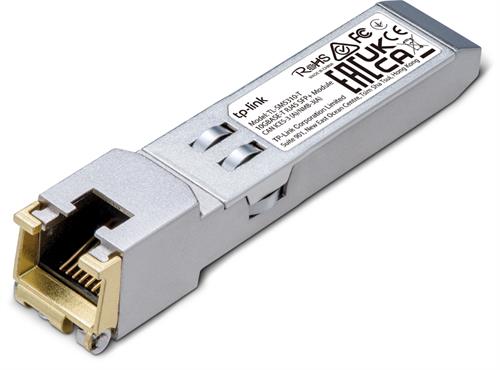

TP-Link TL-SM5310-T 10G BASE-T SFP+ to RJ45 Module, Retail Box, No Warranty
Product Overview
The TP-Link TL-SM5310-T is a 10G BASE-T SFP+ to RJ45 module that enables easy conversion from SFP+ fiber to 10G Ethernet, supporting data transmission up to 30 meters. It is compatible with multiple standards, including 10GBASE-T and 5GBASE-T, and features a plug-and-play design for effortless installation. With a robust metallic enclosure and low power consumption, this module is ideal for high-performance networking applications.
Features
•Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
•Support DDM (Temperature and Voltage)
•Hot-Pluggable SFP+ Footprint Features
•Support TX Disable function
•Commercial Product Operating Temperature Range: 0-70°C
Specifications
•Product code:TL-SM5310-T
•Description: TP-Link TL-SM5310-T 10G BASE-T SFP+ to RJ45 Module,
•10G BASE-T RJ45 SFP+ Module TL-SM5310-T
•Hot Swappable Yes
•Dimensions (W*D*H) 2.7*0.5*0.5 in (67.4*13.75*13.8 mm)
•Standards and Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
•Power Supply 3.3V
•Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m)
•1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
•10GBASE-T: UTP cat.6a or above (max. 30m)
•Data Rate 10.3 Gbps
•Port Type 1× 10G RJ45 Port
•Safety & Emission FCC, CE, RoHS
•Environment Operating Temperature: 0–70 ℃ (32–158 ℉)
•Storage Temperature: -40–85 ℃ (-40–185 ℉)
