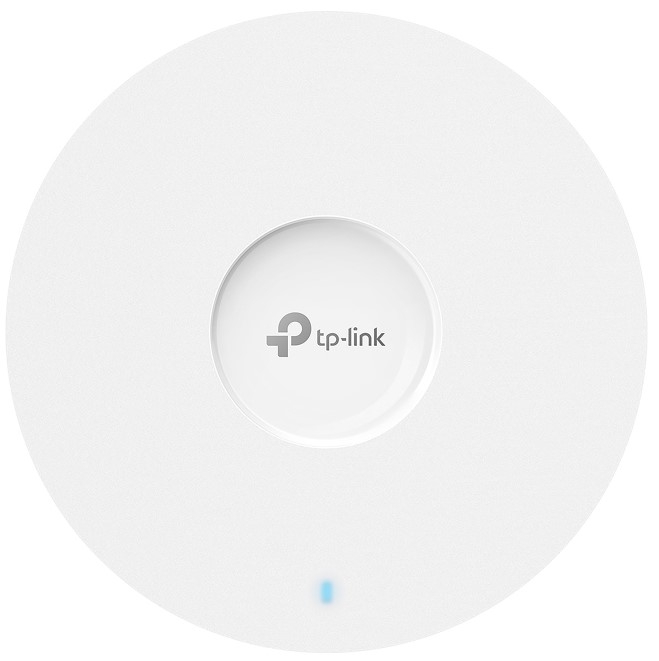

TP Link AX3000 Ceiling Mount WiFi 6 Access Point

Description

TP Link AX3000 Ceiling Mount WiFi 6 Access Point – Supports WiFi 6 Speeds, 2402Mbps on 5GHz and 574Mbps on 2.4GHz Signal Rate, Support Both 802.3 at PoE, 1 x Gigabit PoE+ Port Interface, Internal Omni Antennas, Omada Mesh, Seamless Roaming Advanced Features, Wireless Security, Ultra Slim Design, Omada App, Retail Box, 6 Months Warranty.

Product Overview

The TP Link EAP653 AX3000 Wi‑Fi 6 Ceiling Access Point – dual‑band 802.11ax (2.4 GHz up to 574 Mbps, 5 GHz up to 2402 Mbps) with OFDMA, MU‑MIMO, 1024‑QAM and 160 MHz channels for high‑density, low‑latency wireless in offices, classrooms and hospitality venues.Power & install – 1× Gigabit Ethernet with 802.3at PoE (or optional 12 V DC adapter sold separately), internal omni antennas (2× 4 dBi @ 2.4 GHz, 2× 5 dBi @ 5 GHz), ceiling/wall/junction‑box mounting kits included, compact 160 × 160 × 33.6 mm design covering ~1500 ft² and 250+ concurrent clients.Management & security – Omada SDN ready (hardware OC200/OC300, software or cloud controller), Zero‑Touch Provisioning, multi‑site/L3 management, SNMP v1–v3, SSH, syslog, email alerts, LED control; WPA3‑Enterprise/Personal, 802.1X, captive portal, SSID‑to‑VLAN, rogue AP detection and client/AP/SSID statistics for secure, scalable deployments.

Specifications

•Product Code: EAP653 UR
•Description: AX3000 Ceiling Mount WiFi 6 Access Point
Hardware Features
•Interface: 1x Gigabit PoE+ Port
•Button: Reset
Power Supply
•802.3at PoE
•12V DC / 1.5 A (Power Adapter IS NOT included)
•48V Passive PoE
Max. Power Consumption
•EU: 14.2 W
•US: 15.5 W
•Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna: Internal Omni
•2.4 GHz: 2× 5 dBi
•5 GHz: 3× 5 dBi
Mounting
•Ceiling /Wall Mounting (Kits included)
•Junction Box Mounting
Wireless Features
•Coverage: 185 ㎡ (2000 ft²)
•Concurrent Clients: 250+
•Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
•Frequency: 2.4GHz and 5GHz
Signal Rate
•5GHz: Up to 2402Mbps
•2.4GHz: Up to 574Mbps

Wireless Functions
•1024-QAM
•4× Longer OFDM Symbol
•OFDMA
•Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
•Enable/Disable Wireless Radio
•Automatic Channel Assignment
•Transmit Power Control (Adjust Transmit Power on dBm)
•QoS(WMM)
•MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
•HE160 (160 MHz Bandwidth)‡
•Seamless Roaming(802.11k/v/r)§
•Omada Mesh§
•Band Steering
•Load Balance
•Airtime Fairness
•Beamforming
•Rate Limit
•Reboot Schedule
•Wireless Schedule
•Wireless Statistics based on SSID/AP/Client

Wireless Security
•Captive Portal Authentication§
•Access Control
•Wireless Mac Address Filtering
•Wireless Isolation Between Clients
•SSID to VLAN Mapping
•Rogue AP Detection
•802.1X Support
•WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Management Features
•Omada App: Yes
•Cloud Access: Yes. Require the use of an Omada controller.
•Email Alerts: Yes
•LED ON/OFF Control: Yes
•Management MAC Access Control: Yes
•SNMP: v1, v2c, v3
•System Logging Local/Remote Syslog: Local/Remote Syslog
•SSH: Yes
•Web-based Management: HTTP/HTTPS
•L3 Management: Yes
•Multi-site Management: Yes
•Management VLAN: Yes
•Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
