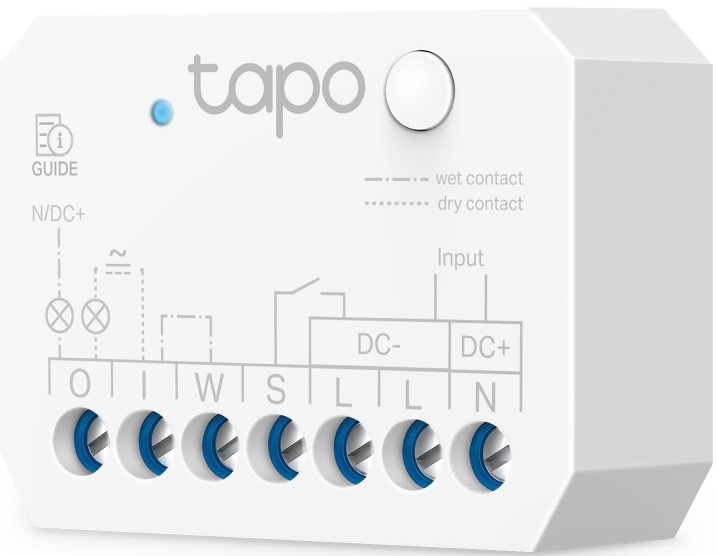

TP Link Tapo S110E Smart Switch Module

Description

TP-Link Tapo S110E Smart Switch Module – Dry Contact Mode, Wet Contact Mode, Garage Door Control, Track Energy Generation and Usage, Take Control of Your Energy Bill, Full Compatibility, Zero-Control Protection, Remote Control, Schedule to Automatically Manage Devices, Voice Control, Relay Failure Protection, Instant Control via Bluetooth, Indoors Only, -20ºC ~ 40ºC (-4°F ~ 104°F ) Operating Temperature, Retail Box, 6 Months Warranty.

Product Overview

Tapo S110E Smart Switch Module Compact (44.7 × 33.9 × 16.1 mm) Matter-certified relay module with 2.4GHz Wi-Fi (IEEE 802.11b/g/n) and Bluetooth for indoor smart control of garage doors, boilers, lights, and irrigation. Supports 100-250V~ (10A resistive, 150W LED) plus versatile DC ratings, energy tracking, and broad compatibility with Apple Home, Alexa, Google Assistant, SmartThings, and IFTTT—no hub needed. Durable in -20°C to 40°C environments (10-90% RH); includes jumper wires, labels, and quick guide for easy dry/wet contact installations.

Key Uses

Ideal for behind-the-wall automation like garage openers or pool pumps, with remote scheduling and voice control across platforms.

Features

•Dry Contact Mode – It is perfect for managing garage doors, boilers, irrigation and sprinkler systems, access control systems, and more.
•Wet Contact Mode – Effortlessly control smart lights, outlets, and electric floor heating without replacing your existing equipment.
•Garage Door Control – Upgrade your garage door for smart voice control, remote control, and seamless automation. For added security, you can also set a unique PIN code for access.
•Track Energy Generation and Usage – Tapo S110E features advanced hardware that automatically detects the current direction, offering a true plug-and-play experience without the need for manual setup.
•Take Control of Your Energy Bill – Tracks the energy use of connected devices and allows electricity rate input for bill estimates.
•Full Compatibility -Tapo S110E supports Matter. It is compatible with various platforms, including Apple Home, Alexa, Google Home, Samsung SmartThings, and IFTTT.
•Zero-Crossing Protection – Addresses relay contact welding, extending the lifespan of smart switch modules by over 10 times.
•Remote Control – Instantly turn connected devices on/off from wherever you are through the Tapo app.
•Schedule – Preset a schedule to automatically manage devices.
•Voice Control – Use simple voice commands for hands-free control of connected devices via Siri, Alexa, Google Assistant, or Samsung SmartThings.
•Relay Failure Protection – The failure of the relay can be identified and an alarm will be sent to the user via the Tapo app.
•Small Size – Designed for maximum compatibility, the compact Tapo S110E fits near lights, behind switches, or in wall outlets—even the smallest EU boxes.
•Instant Control via Bluetooth – Bluetooth control works offline – configure via Tapo App without Wi-Fi. Reconnect easily if router fails or password changes, no disassembly needed.

Specifications

•Product Code: TAPO S110E
•Description: TP-Link Smart Switch Module
•Wireless Type: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi, Bluetooth
•Operating Temperature: -20ºC ~ 40ºC (-4°F ~ 104°F )
•Operating Humidity: 10%~90%RH, Non-condensing
•Package Content: Tapo S110E x 1, Jumper Wire x 3, Wire Labels, Quick Start Guide
•Product Dimensions: 44.7 × 33.9 × 16.1 mm
•Environment: Indoors only
•Packaging Dimensions: 65 × 48 × 25 mm
•Rated: 100-250V~, 50/60Hz, 10A Resistive, 1.5A Motor, 150W LED; 5-30V ⎓ 10A; 30-48V ⎓ 1.5A; 48-60V ⎓ 1A (5-24V ⎓ 10A is only for dry contact mode)
Third-Party Platform
•Matter-Certified
•Apple Home
•Alexa
•Google Assistant
•Samsung SmartThings
• IFTTT
